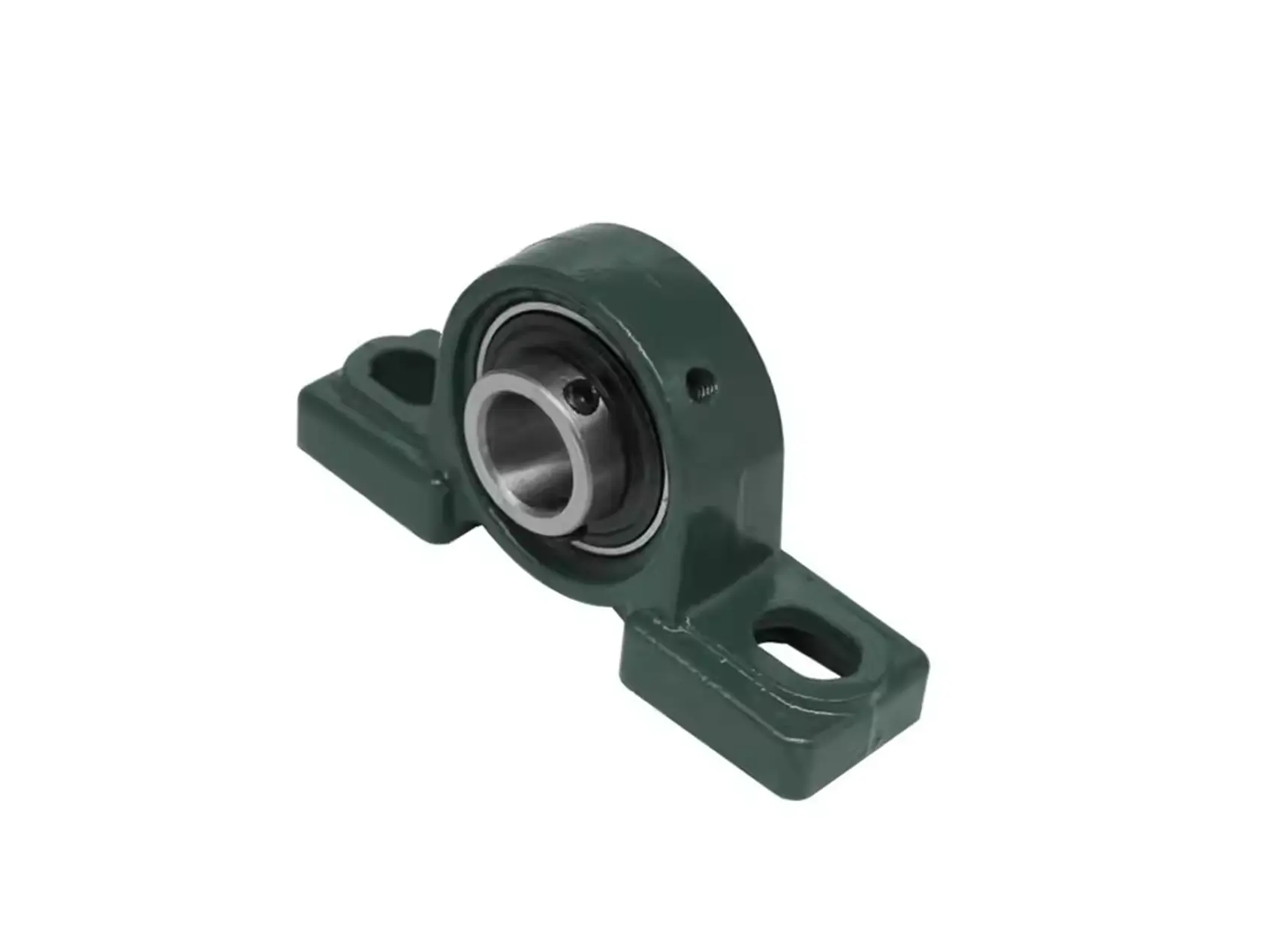

UCP206 Pillow Block Bearing Centering function UC206 Spherical Ball Bearing + P206 Block Housing Top Screw

Composition: It consists of an outer spherical ball bearing with seals on both sides and a cast bearing seat. The inner ring of the outer spherical ball bearing is wider than the outer ring. The outer ring has a truncated spherical outer surface, which can automatically align with the concave spherical surface of the bearing seat.

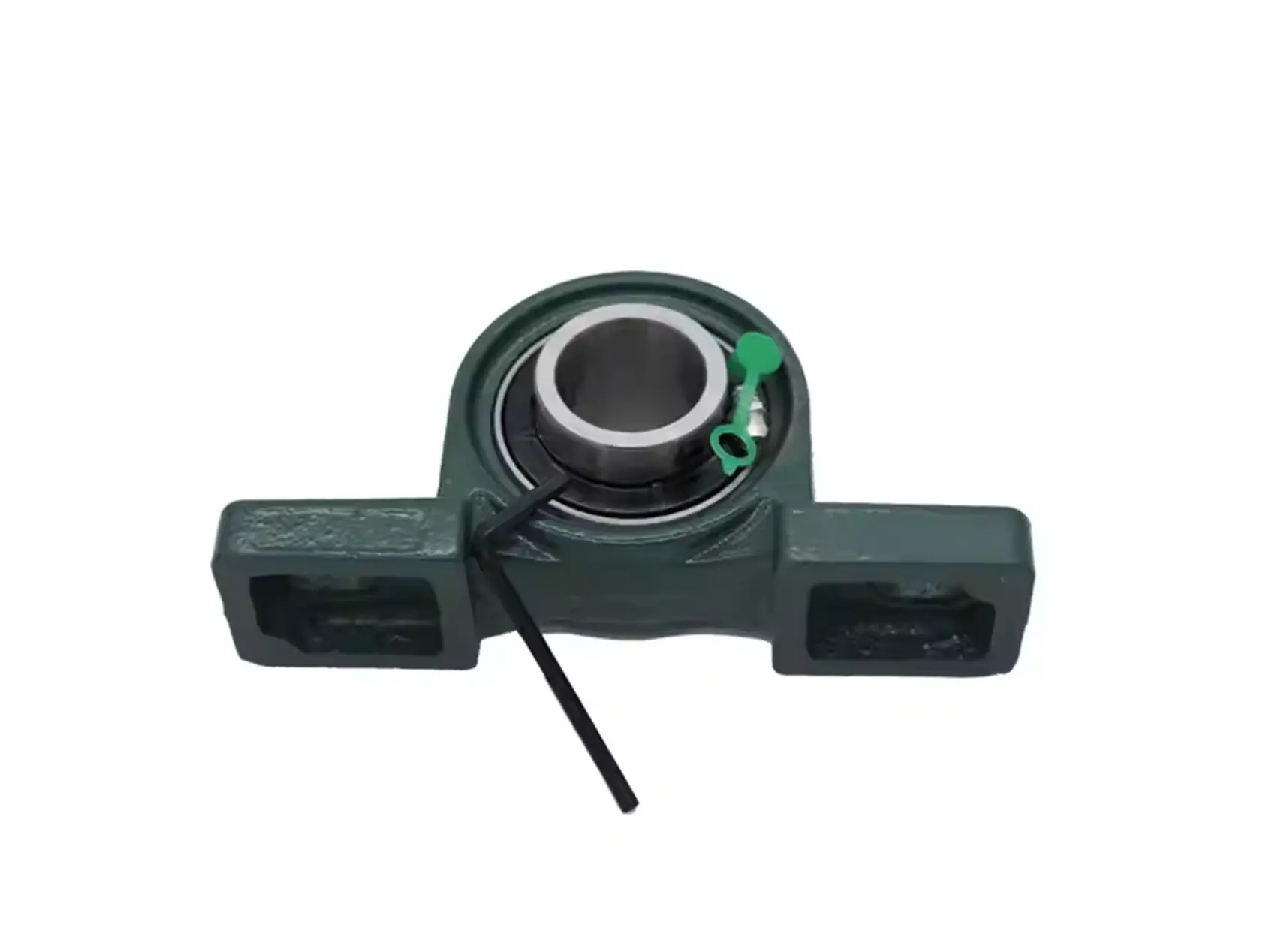

Locking method: There is a gap between the inner hole and the shaft. The inner ring of the bearing is fixed to the shaft by a top screw, an eccentric sleeve or a tightening sleeve. UCP 206 usually uses two set screws on the extended inner ring to achieve locking with the shaft.

Easy to install: The integral bearing seat and bearing combination can be directly installed on the main body of the mechanical device through a few bolts, reducing installation time and workload.

Automatic self-aligning: It can adapt to a certain degree of inclination and deviation of the shaft, compensate for installation errors and deformation during equipment operation, and ensure the normal operation of the bearing.

Good sealing: It usually comes with a sealing device, such as a sealing ring or a dust cover, which can effectively prevent dust, impurities, etc. from entering the bearing and extend the service life of the bearing.

Industrial machinery: It is widely used in various industrial production equipment, such as conveyors, mixers, fans, pumps, etc., to support the rotating shaft and ensure the normal operation of the equipment.

Agricultural machinery: Such as harvesters, seeders, tractors and other agricultural equipment, it can withstand the complex loads and vibrations in agricultural operations.

Construction machinery: For example, cranes, concrete mixers, excavators, etc., provide reliable support and rotation functions for equipment in harsh working environments.
